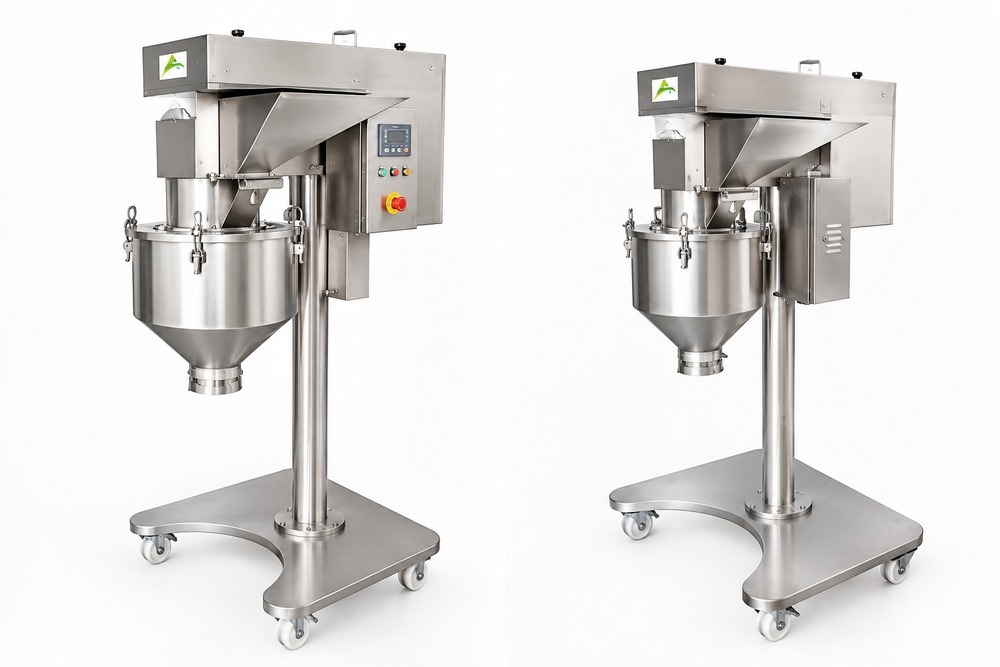

The Multi Mill Machine is a high-quality pharmaceutical machinery that is perfect for grinding, mixing, and homogenizing various materials. It is made of durable stainless steel material that ensures long-lasting performance and easy maintenance. This machine operates at a voltage of 200-250 volts (V) and has a manual control mode. It is perfect for small to medium-scale production and is suitable for industries like pharmaceuticals, chemicals, food, and cosmetics. With a warranty of 5-7 years, this Multi Mill Machine is a reliable investment for your business. It is designed to provide high-speed functionality and efficient performance. Its compact size and user-friendly design make it easy to operate and maintain. The Multi Mill Machine is computerized-free, which makes it more affordable and straightforward to operate.
Multi mill is widely used for wet and dry granulation, pulverization etc. of pharmaceutical, chemical, bulk drug, cosmetic, colours, dyestuffs, food products etc. The unit consists of stainless steel hopper, processing chamber with beater assembly, motor, DOL starter, three speed pulley, screen and sturdy body.
Features:
- All contact parts SS 304/ SS 316. Available in standard and GMP model.
- Direction of beaters can be changed by reversible switch from knife to impact toward and vice versa.
- All contact parts can be easily and quickly dismantled for cleaning.
- Castors are provided for mobility of the machine.
- Flame proof electricals can be provided.
- Beaters and scraper blades are hardened and hard chrome plated
|
MODEL
|
AT 28
|
|
Output reduction
|
50 kgs. To 200 kgs. Per hour
|
Beater
|
12 nos
|
Motor
|
3 hp, 2800 RPM, 415 V, 50Hz, 3
|
Screen area (mm)
|
495 x 135 (66825 sq. Mm)
|
Screen size
|
(I) perforated 0.5 to 25 mm (II)
|
Rotor speed
|
750/1500/2300/3000 RPM.
|
Dimensions (mm)
|
1230(L) x 760 (W)x 1700 (H1)
|
Rotor assy. Dia
|
250 mm
|
FAQs of Multi Mill Machine:
Q: What is the warranty period for the Multi Mill Machine?
A: The Multi Mill Machine comes with a warranty period of 5-7 years.
Q: What is the material used in the Multi Mill Machine?
A: The Multi Mill Machine is made of high-quality stainless steel material.
Q: What is the control mode of the Multi Mill Machine?
A: The Multi Mill Machine has a manual control mode.
Q: Is the Multi Mill Machine computerized?
A: No, the Multi Mill Machine is not computerized.
Q: What is the voltage requirement for the Multi Mill Machine?
A: The Multi Mill Machine operates at a voltage of 200-250 volts (V).
