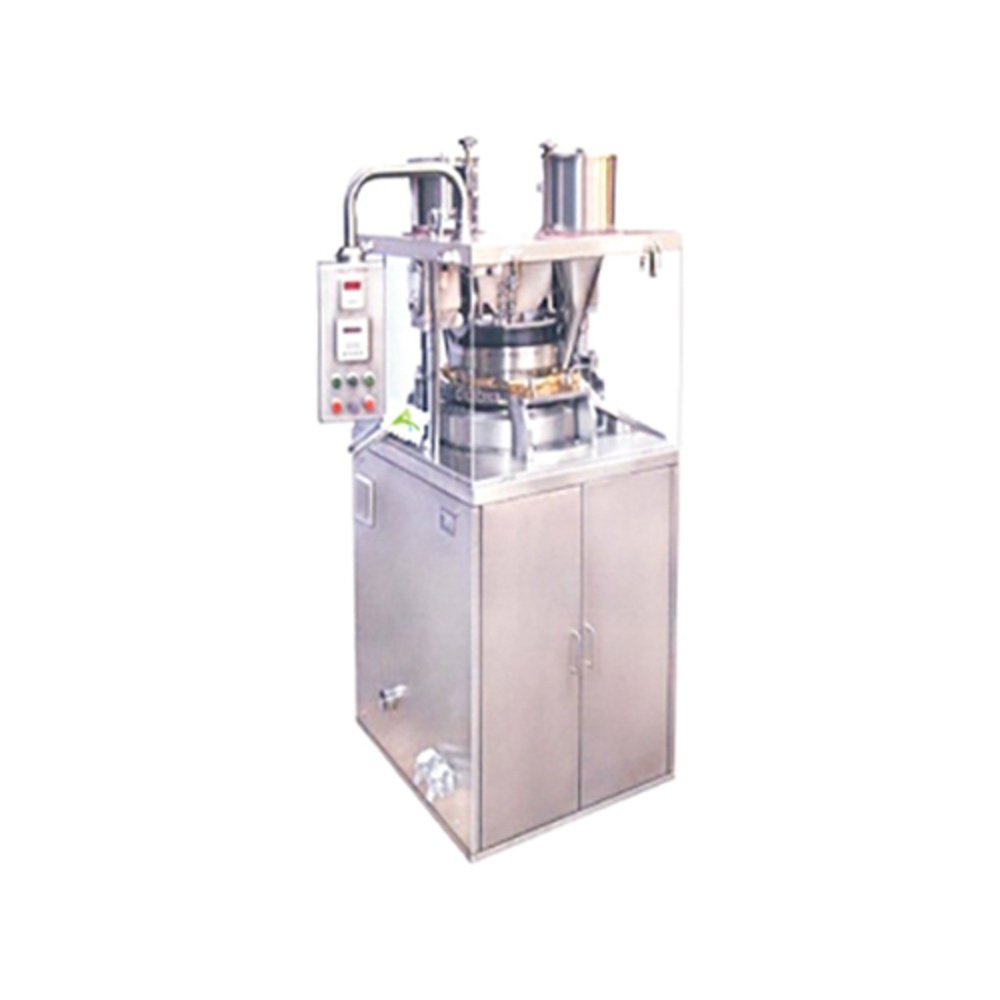

The GMP Model Double Sided Rotary Tablet Press is a reliable and efficient pharmaceutical machinery designed for the production of high-quality tablets. Made of sturdy stainless steel material, this tablet press ensures durability and longevity. With its manual control mode, users can easily adjust the compression force, tablet thickness, and filling depth for precise tablet production. This tablet press operates on a voltage of 200-250 Volt (v) and is not computerized, making it easy to use and maintain. Its double-sided design allows for high-speed production of up to 100,000 tablets per hour, making it suitable for large-scale tablet production. This machine comes with a warranty of 5-7 years, providing customers with peace of mind.
MODEL
|
AT DB-23
|
AT D-27
|
AT B-27
|
AT B-35
|
AT BB-45
|
No. of stations
|
23
|
27
|
27
|
35
|
45
|
Type of tooling
|
D/B
|
D
|
B
|
B
|
BB
|
Output tablet/hour
|
49450
|
120000
|
120000
|
165000
|
210000
|
Max. operating
|
10 Ton
|
10 Ton
|
6.5 Ton
|
6.5 Ton
|
6.5 Ton
|
Maxi. tablet diameter
|
23 mm
|
25 mm
|
16 mm
|
16 mm
|
11 mm
|
Maxi. depth of fill
|
20 mm
|
20 mm
|
17.5 mm
|
17.5 mm
|
17.5 mm
|
Upper punch
|
1.5 to 6 mm
|
1.5 to 6 mm
|
1.5 to 6 mm
|
1.5 to 6 mm
|
1.5 to 6 mm
|
Main electric motor
|
2.5 kw/3 hp
|
3.70 kw/5 hp
|
2.5 kw/3 hp
|
2.5 kw/3 hp
|
2.5 kw/3 hp
|
Overall dimension in
|
109x109x182H
|
109x109x182H
|
109x109x182H
|
109x109x182H
|
109x109x182H
|
Net weight
|
1145kg
|
1145kg
|
1145kg
|
1145kg
|
1145kg
|
Case dimension
|
131x137x204H
|
131x137x204H
|
131x137x204H
|
131x137x204H
|
131x137x204H
|
Gross weight
|
1400 kg
|
1400 kg
|
1400 kg
|
1400 kg
|
1400 kg
|
FAQs of GMP Model Double Sided Rotary Tablet Press:
Q: What is the control mode of this tablet press?
A: The control mode of this tablet press is manual.
Q: What type of machinery is the GMP Model Double Sided Rotary Tablet Press?
A: It is a pharmaceutical machinery used for the production of tablets.
Q: Is this tablet press computerized?
A: No, this tablet press is not computerized.
Q: What is the warranty period for this tablet press?
A: This tablet press comes with a warranty of 5-7 years.
Q: What is the maximum production capacity of this tablet press?
A: This tablet press has a maximum production capacity of up to 100,000 tablets per hour.
