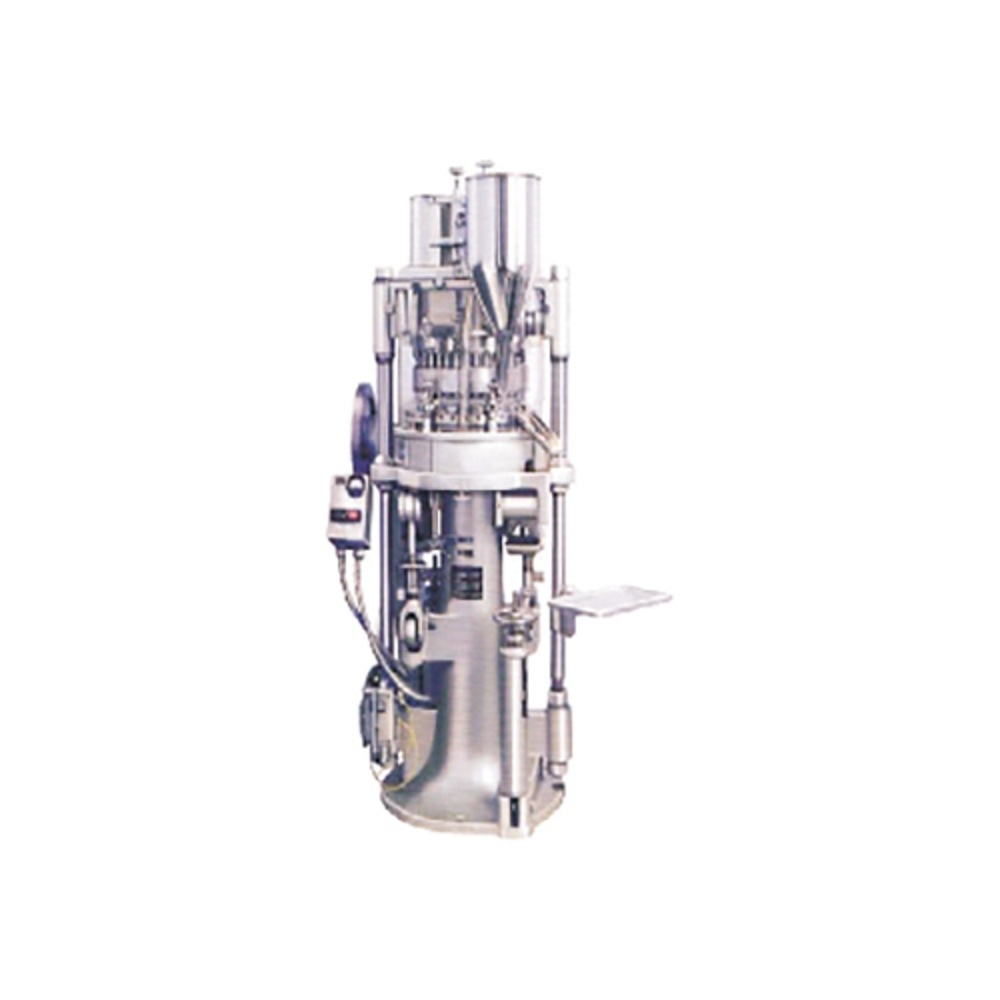

Standard Model Double Sided Rotary Tablet Press

Standard Model Double Sided Rotary Tablet Press Specification

Type
Pharmaceutical Machinery

Material
Stainless Steel

Capacity
Pcs/hr Pcs/hr

Computerized
No

Control Mode
Manual

Voltage
200-250 Volt (v)

Power
510 HP Horsepower (HP)

Weight (kg)
10002000 kg Kilograms (kg)

Dimension (L*W*H)
Customized Millimeter (mm)

Color
Silver

Warranty
1 Year

Standard Model Double Sided Rotary Tablet Press Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Cash in Advance (CID)

Supply Ability
50 Units Per Month

Delivery Time
30 Days

Main Domestic Market
All India

About Standard Model Double Sided Rotary Tablet Press

The Standard Model Double Sided Rotary Tablet Press is a top-performing pharmaceutical machinery designed to enhance the production process of tablets. Made from high-quality stainless steel material, this tablet press is built to last and can withstand harsh production environments. Its manual control mode makes it easy to operate with minimal training, while its double-sided rotary design ensures high production output. The press is compatible with a voltage range of 200-250V, making it suitable for use in different countries. With a warranty of 5-7 years, you can be assured of its durability and longevity.

MODEL	AT DB-23	AT D-27			AT B-27	AT B-35		AT BB-45
No. of stations	23		27	27			35	45
Type of tooling	D/B		D	B			B	BB
Output tablet/hour	49450		120000	120000			165000	210000
Max. operating	10 Ton		10 Ton	6.5 Ton			6.5 Ton	6.5 Ton
Maxi. tablet diameter	23 mm		25 mm	16 mm			16 mm	11 mm
Maxi. depth of fill	20 mm		20 mm	17.5 mm			17.5 mm	17.5 mm
Upper punch	1.5 to 6 mm		1.5 to 6 mm	1.5 to 6 mm			1.5 to 6 mm	1.5 to 6 mm
Main electric motor	2.5 kw/3 hp		3.70 kw/5 hp	2.5 kw/3 hp			2.5 kw/3 hp	2.5 kw/3 hp
Overall dimension in	109x109x182H		109x109x182H	109x109x182H			109x109x182H	109x109x182H
Net weight	1145kg		1145kg	1145kg			1145kg	1145kg
Case dimension	131x137x204H		131x137x204H	131x137x204H			131x137x204H	131x137x204H
Gross weight	1400 kg		1400 kg	1400 kg			1400 kg	1400 kg

FAQs of Standard Model Double Sided Rotary Tablet Press:

Q: What is the material used to make the Standard Model Double Sided Rotary Tablet Press?

A: The Standard Model Double Sided Rotary Tablet Press is made from high-quality stainless steel material.

Q: Is the Standard Model Double Sided Rotary Tablet Press computerized?

A: No, the Standard Model Double Sided Rotary Tablet Press is not computerized. It has a manual control mode.

Q: What is the warranty period for the Standard Model Double Sided Rotary Tablet Press?

A: The warranty period for the Standard Model Double Sided Rotary Tablet Press is 5-7 years.

Q: Is the Standard Model Double Sided Rotary Tablet Press suitable for use in different countries?

A: Yes, the Standard Model Double Sided Rotary Tablet Press is compatible with a voltage range of 200-250V, making it suitable for use in different countries.
